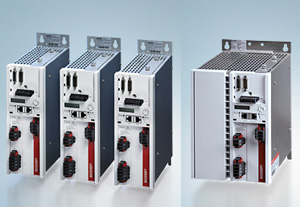

AX51xx | 数字式紧凑型伺服驱动器（单通道）

　　这种全新系列的伺服驱动器对功能和产品进行了优化，用户可选择单通道和多通道两种形式，以达到最佳的性价比。集成的快速控制技术支持高速、高动态定位任务。 EtherCAT －一种高性能通讯系统，能够与基于 PC 的控制技术理想结合。

　AX51xx 是单通道的伺服驱动器，它的最大额定电机电流为 170 A（高达 315 A 额定电机电流的伺服驱动器正在研发中）。

　　采用 AX5000 系统，通过“AX-Bridge”快速连接系统可以简单、快速地连接多个 AX5000 设备，以构成一个多轴系统。可插拔式电源模块与接口模块由电源、DC-link 和 24 V DC 控制和制动电压组成。

　　AX5000 支持各种电机类型；可连接不同尺寸和类型的电机，无需借助任何额外措施。例如：同步电机、直线电机、扭矩电机和异步电机。多反馈式接口支持所有通用标准。

　　AX5000 是专为 EtherCAT（实时以太网系统）开发的。 EtherCAT 的卓越性能特别有益于驱动技术：它们拥有很短的周期时间和良好的同步性及同时性。即使通讯网络中连接了大量的设备，通过 EtherCAT 仍然能够实现极短的周期时间。

特点

技术参数	AX5101	AX5103	AX5106	AX5112
Rated output current at 50 °C (1-phase connection)	1 x 1.5 A	1 x 3 A	1 x 4.5 A	–
Rated output current at 50 °C (3-phase connection)	1 x 1.5 A	1 x 3 A	1 x 6 A	1 x 12 A
Minimum rated motor current at full current resolution	0.35 A	1 A	1 A	6 A
Rated supply voltage	3 x 100 V AC -10 %…3 x 480 V AC +10 % 1 x 100 V AC -10 %…1 x 240 V AC +10 %			3 x 100 V AC -10 %… 3 x 480 V AC +10 %
DC-link voltage	max. 890 V DC
Peak output current (1)	4.5 A	7.5 A	13 A	26 A
Rated apparent power for S1 operation (selection) 120 V (1-/3-phase connection) 230 V (1-/3-phase connection) 400 V (only 3-phase connection) 480 V (only 3-phase connection)	0.3 kVA 0.6 kVA 1.0 kVA 1.2 kVA	0.6 kVA 1.2 kVA 2.1 kVA 2.5 kVA	1.2 kVA 2.4 kVA 4.2 kVA 5.0 kVA	2.5 kVA 4.8 kVA 8.3 kVA 10.0 kVA
Continuous braking power (2)	50 W	50 W	150 W	90 W
Max. braking power (3)	14 kW
Power loss (4)	35 W	50 W	85 W	160 W
System bus	EtherCAT
Weight	4.0 kg	4.0 kg	5.0 kg	5.0 kg

(1)RMS for max. 7 seconds, (2)internal brake resistor, (3)internal brake resistor, (4)S1 operation, incl. power supply, without brake chopper

技术参数	AX5118	AX5125	AX5140
Rated output current at 50 °C (1-phase connection)	–
Rated output current at 50 °C (3-phase connection)	1 x 18 A	1 x 25 A	1 x 40 A
Minimum rated motor current at full current resolution	12 A	12 A	18 A
Rated supply voltage	3 x 100 V AC -10 %…3 x 480 V AC +10 %
DC-link voltage	max. 890 V DC
Peak output current (1)	36 A	50 A	80 A
Rated apparent power for S1 operation (selection) 120 V (1-/3-phase connection) 230 V (1-/3-phase connection) 400 V (only 3-phase connection) 480 V (only 3-phase connection)	3.4 kVA 7.2 kVA 12.5 kVA 15.0 kVA	4.8 kVA 10.0 kVA 17.3 kVA 20.8 kVA	8.3 kVA 16.0 kVA 28.0 kVA 33.0 kVA
Continuous braking power (2)	200 W
Max. braking power (3)	27 kW
Power loss (4)	255 W	340 W	550 W
System bus	EtherCAT
Weight	11.0 kg	11.0 kg	14.0 kg

(1)RMS for max. 7 seconds, (2)internal brake resistor, (3)internal brake resistor, (4)S1 operation, incl. power supply, without brake chopper

Dimensions	AX5118	AX5125	AX5140
Height without connectors	274 mm	274 mm	300 mm
Width	185 mm
Depth without connectors	232 mm

订货信息	AX51xx-0000
AX5101-0000	Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 1.5 A, EtherCAT interface
AX5103-0000	Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 3 A, EtherCAT interface
AX5106-0000	Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 6 A, EtherCAT interface
AX5112-0000	Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 12 A, EtherCAT interface
AX5118-0000	Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 18 A, EtherCAT interface
AX5125-0000	Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 25 A, EtherCAT interface
AX5140-0000	Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 40 A, EtherCAT interface
